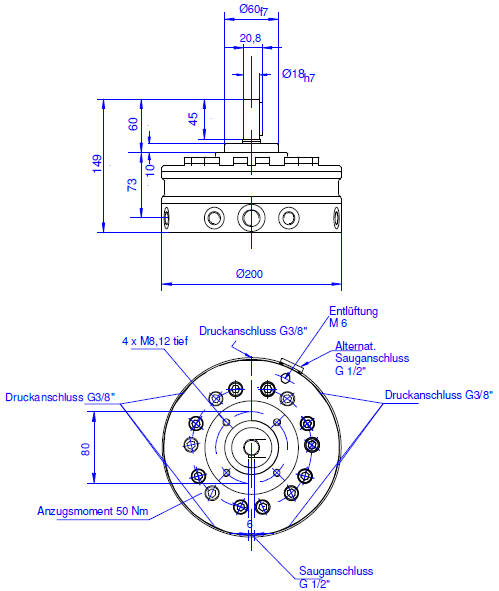

7R-ET *7

Radial piston pump with7Flow rates a1piston

weight: 13,7 kg

inputvalue
Drive speedn= rpm
operating pressurep= bar
Piston type Vg Q (0 bar) p(max) Q P
Z7 0.23 cm³/U 0.33 l/min 700 bar 0.31 l/min 0.12 kW
Z7S 0.14 cm³/U 0.2 l/min 700 bar 0.19 l/min 0.07 kW
A7 0.4 cm³/U 0.58 l/min 550 bar 0.55 l/min 0.21 kW
A7S 0.25 cm³/U 0.36 l/min 550 bar 0.35 l/min 0.13 kW
B7 0.63 cm³/U 0.91 l/min 450 bar 0.87 l/min 0.33 kW
B7S 0.39 cm³/U 0.57 l/min 450 bar 0.54 l/min 0.2 kW
C7 0.9 cm³/U 1.31 l/min 350 bar 1.25 l/min 0.47 kW
C7S 0.57 cm³/U 0.82 l/min 350 bar 0.78 l/min 0.29 kW
D7 1.06 cm³/U 1.54 l/min 300 bar 1.46 l/min 0.55 kW
D7S 0.66 cm³/U 0.96 l/min 300 bar 0.91 l/min 0.34 kW
E7 1.23 cm³/U 1.78 l/min 250 bar 1.7 l/min 0.64 kW
E7S 0.77 cm³/U 1.12 l/min 250 bar 1.06 l/min 0.4 kW
F7 1.41 cm³/U 2.05 l/min 200 bar 1.95 l/min 0.73 kW
F7S 0.88 cm³/U 1.28 l/min 200 bar 1.22 l/min 0.46 kW
